Pneumatic Angle Shut off Valve DN80 PN16 Bar Flange End DN15 ~ DN100 Size

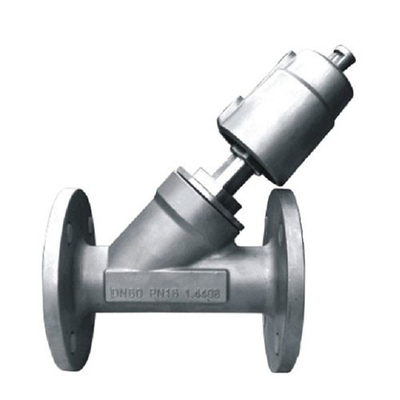

Large Image : Pneumatic Angle Shut off Valve DN80 PN16 Bar Flange End DN15 ~ DN100 Size

Product Details:

Place of Origin:	Shanghai , China
Brand Name:	OEM
Certification:	ISO 9001/ API 6D
Model Number:	YJ641

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	Usually packing by plywood case suit for sea delivery
Delivery Time:	1usually within 35 days after received your payment
Payment Terms:	T/T advance or L/C at sight
Supply Ability:	90,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Globe Valve	Application:	Oil, Gas, Water, Steam Etc.,
Size:	DN15 ~DN100	Pressure:	PN16~160/ 150lbs~2500lbs/JIS 10K/20K
Standard:	API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K	Temperature:	-29~225 C
Body:	Cast Steel/WCB/WC6/stainless Steel	Stem:	Stainless Steel/ 2Cr13
Actuator:	Pneumatic
Highlight:	cast steel globe valve , 2 inch globe valve

Angle Shut-off Valve DN80 PN16 Bar Flange End, With Pneumatic 2W, 150c, STS316L, CSD, AIR(SV), 1.5s, L/S

The new flange angle seat valve body adopts stainless steel material, suitable for corrosive conditions.

In the non working state, the angle seat valve due to the role of the spring, the valve is normally open or normally closed.

When the actuator piston is compressed, the valve is opened or closed, and the double action form is controlled by the compressed gas to control the valve switch.

From the external medium advanced stainless steel flange angle seat valve, overflow and the slide from the regulator gland, angle seat valve body structure can achieve a larger flow, especially compared with ordinary globe valves.

Flange angle seat valve pneumatic actuator is divided into single and double acting (single acting pneumatic head is usually a hole); its working principle; according to the spring return to the role of open and closed, divided into normally open and normally closed.

Double action (pneumatic head is usually two holes); working principle: to control the gas to the gas switch.

New flange angle seat valve main performance parameters:

Pressure range: 0-16bar

Medium temperature: -10 ~ +180

Ambient temperature: -10 ~ +60

Specifications: DN15-DN100,1/2 '-4'

Control pressure: 3-8bar

Body material: stainless steel, CF8/304, CF8M/316

Sealing material: PTFE PTFE

Actuator housing: polyamide PA

Medium: neutral gas, air, water, steam

Flange standard: GB, ANSI, DIN, JIS

Features: double action, single action, waterproof hammer

Control function: normally open

Pneumatic Angle Shut off Valve DN80 PN16 Bar Flange End DN15 ~ DN100 Size 0

DN	L	T	f	D	D1	D2	H	A	B	n-d	Pueumatic
15	120	14	2	95	65	40	137	180	64	4-Φ14	50
20	130	14	2	105	75	50	145	185	64	4-Φ14	50
25	140	14	2	115	85	60	173	210	80	4-Φ14	63
32	150	16	2	135	100	70	210	240	80	4-Φ18	63
40	180	16	2	145	110	8	260	245	80	4-Φ18	63
50	195	16	2	160	125	92	300	295	100	4-Φ18	80
65	230	18	2	185	145	115	315	320	126	4-Φ18	100
80	250	18	2	195	160	130	330	330	126	8-Φ18	100
100	280	18	2	215	180	150	350	360	156	8-Φ18	125

Flange end angle shut off valve flow characteristics:

NPT	Inner hole	KV	Max pressure	mini control	Pneumatic	flow
G3/8"	10	3.7	0~16bar	4	50	Valve seat upper
G1/2"	15	4.2	0~16bar	2.7	50
G3/4"	20	8	0~16bar	2.7	50
G1	25	19	0~16bar	2	63
G1 1/4"	32	27.5	0~16bar	2	63
G1 1/2"	40	42	0~16bar	2	63
G2	50	52	0~16bar	2	80
G2 1/2"	65	77	0~14bar	1.6	100

Pneumatic angle seat valve according to the performance parameters of the cylinder:

PPS executive body shell is suitable for ambient temperature: +5

Double acting actuator without reset spring

Quick connection

Electronic position feedback

Independent adjustable stroke limit, suitable for high and low flow

Manual emergency switch

Pilot valve suitable for Namur adapter
