Yan Style Flanged Globe Valve Rubber Lined Flanged Rating 150LBS

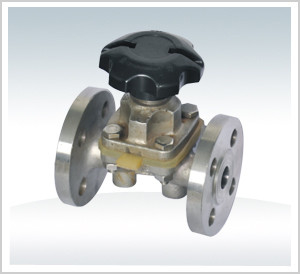

Large Image : Yan Style Flanged Globe Valve Rubber Lined Flanged Rating 150LBS

Product Details:

Place of Origin:	Shanghai , China
Brand Name:	OEM
Certification:	ISO 9001/ API 6D
Model Number:	G41 / G41F

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	Usually packing by plywood case suit for sea delivery
Delivery Time:	1usually within 35 days after received your payment
Payment Terms:	T/T advance or L/C at sight
Supply Ability:	90,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Diaphragm Valve	Application:	Acid, Water, Sewage Etc.,
Size:	DN15 ~DN600	Pressure:	PN16 /125lbs /JIS 5K
Standard:	API 6D/ ANSI 16.5 B/ JIS 20K/JIS 10K	Temperature:	-29~425 C
Body:	Cast Iron / Grey Iron / Ductile Iron	Stem:	Stainless Steel/ 2Cr13
Highlight:	cast steel globe valve , 2 inch globe valve

Diaphragm Valve, Rubber Lined Flanged Rating 150LBS, Flange Drilling to ANSI B16.5

Diaphragm valve , body butyl rubber vulcanized/lined and butyl rubber diaphragm

Specification
design	length	flanged	test	mark
GB/T 12239	GB/T 12221/JB1688	JB/T78, GB4216	GB/T 13927	GB/T 12220

Material
No.	name	cast iron	steel	stainless steel
1	Body/Bonnet	HT250	WCB	CF8	CF8M	CF3	CF3M
2	Disc/Stem	HT250	1Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti	00Cr18Ni10	00Cr17Ni14Mo2
3	Trim/seat	(Natural rubber),(Isobutylene-isoprene rubber),PTFE(F4),FEP(F46)
4	Diaphragm	Rubber, fluoro plastic
5	hand wheel	HT250

Yan Style Flanged Globe Valve Rubber Lined Flanged Rating 150LBS 0

PN	work pressure	DN		L	D	D1	N-φd	F	H1	H2	D0	weight
		mm	inch
1.0	1.0	15	1/2"	125	95	65	4-14	2	105	116	100	4.5
		20	3/4"	135	105	75	4-14	2	117	128	100	4.5
		25	1"	145	115	85	4-14	2	121	135	120	5
		32	1-1/4"	160	140	100	4-18	2	132	150	120	7
		40	1-1/2"	180	150	110	4-18	3	156	176	140	9
		50	2"	210	165	125	4-18	3	169	195	140	14
		65	2-1/2"	250	185	145	4-18	3	200	236	200	19
		80	3"	300	200	160	4-18	3	216	256	200	29
		100	4"	350	220	180	8-18	3	270	322	280	45
		125	5"	400	250	210	8-18	3	338	406	320	62
		150	6"	460	285	240	8-22	3	384	464	320	80.5
0.6	0.4	200	8"	570	340	295	8-22	4	518	638	400	146
		250	10"	680	395	350	12-22	4	598	734	500	240
		300	12"	790	445	400	12-22	4	698	778	500	334
		350	14"	900	505	460	16-22	4	723	883	500	371
0.25		400	16"	1000	565	515	16-25	4	868	1078	640	584

Yan Style Flanged Globe Valve Rubber Lined Flanged Rating 150LBS 1

Yan Style Flanged Globe Valve Rubber Lined Flanged Rating 150LBS 2

		L	D	D1	D2	f	b	Z-φd	D	D1	D2	f	b	Z-φd
DN (mm)	NPS (inch)	L	PN1.0MPa						PN1.6MPa
15	1/2"	125	80	55	40	2	12	4-φ12	95	65	45	2	14	4-φ14
20	3/4:	135	90	65	50	2	14	4-φ12	105	75	55	2	16	4-φ14
25	1"	145	100	75	60	2	14	4-φ12	115	85	65	2	16	4-φ14
32	1-1/4"	160	120	90	70	2	16	4-φ14	135	100	78	2	18	4-φ18
40	1-1/2"	180	130	100	80	3	16	4-φ14	145	110	85	3	18	4-φ18
50	2"	210	140	110	90	3	16	4-φ14	160	125	100	3	20	4-φ18
65	2-1/2"	250	160	130	110	3	16	4-φ14	180	145	120	3	20	4-φ18
80	3	300	185	150	125	3	18	4-φ18	195	160	135	3	22	4-φ18
100	4	350	205	170	145	3	18	4-φ18	215	180	155	3	22	8-φ18
125	5	400	235	200	175	3	20	8-φ18	245	210	185	3	24	8-φ18
150	6	460	260	225	200	3	20	8-φ18	280	240	210	3	24	8-φ23
200	8	570	315	280	255	3	22	8-φ18	335	295	265	3	26	8-φ23
250	10	680	370	335	310	3	24	12-φ28	390	350	320	3	28	12-φ23
300	12	790	435	395	362	4	24	12-φ23	440	400	368	4	28	12-φ23

Yan Style Flanged Globe Valve Rubber Lined Flanged Rating 150LBS 3
