Wafer Stainless Steel Butterfly Valve , Triple Offset Butterfly Valve

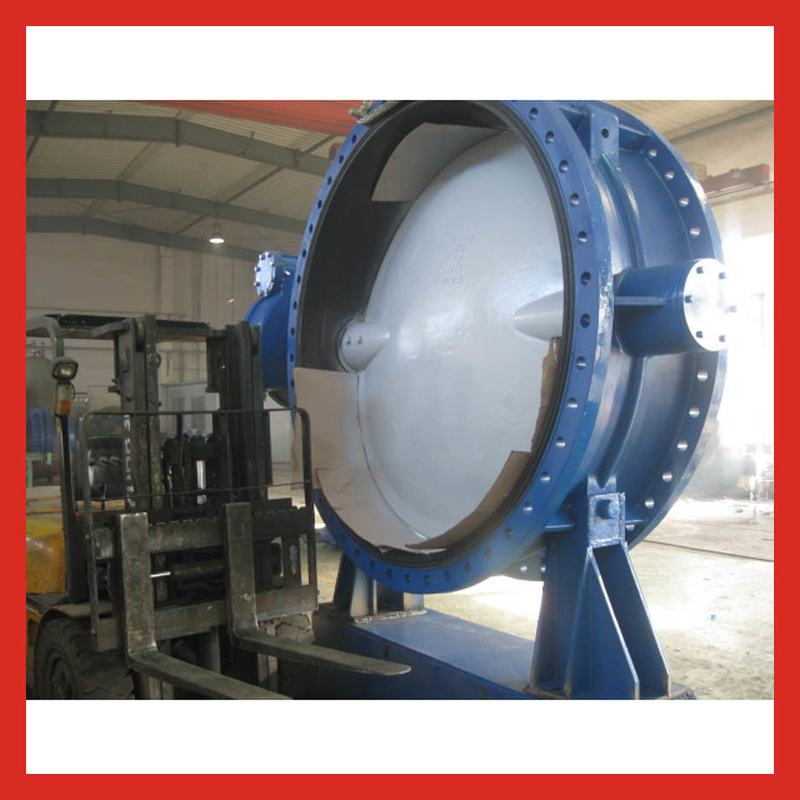

Large Image : Wafer Stainless Steel Butterfly Valve , Triple Offset Butterfly Valve

Product Details:

Place of Origin:	Shanghai , China
Brand Name:	OEM
Certification:	WRAS/ ISO 9001
Model Number:	DN2000

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	negotiation
Packaging Details:	Usually packing by plywood case suit for sea delivery
Delivery Time:	1usually within 35 days after received your payment
Payment Terms:	T/T advance or L/C at sight
Supply Ability:	90,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Butterfly Valve	Type:	Wafer
Size:	2" ~ 120"	Pressure:	125 Lbs / 200psi
Color:	Red	Temperature:	-20~120 C
Other Name:	Triple Offset Butterfly Valve	Disc/wedge:	Ductile Iron As EN 1563 GGG 40
Highlight:	ductile iron butterfly valve , water butterfly valves

Wafer Stainless Steel Butterfly Valve , Triple Offset Butterfly Valve

Stainless Steel Butterfly Valve Application

• Water & Waste water Treatment
• Chemical Processing
• Food & Beverage
• Swimming Pools & Water Parks
• Aquaculture
• Aquarium & Zoo Service
• Pharmaceutical
• Pulp & Paper
• water purification system

• water filtration system
• Marine & Corrosive Environments

Main external and connection dimension

1.0MPa mm

DN	L		H1	H2	H3	Flange dimensions comply with DIN 2501
DN	long type	short type	H1	H2	H3	O	C	g	f	b	n-d
150	210	140	226	165		285	240	212	3	19	8-23
200	230	152	255	192		340	295	268	3	20	8-23
250	250	165	293	227		395	350	320	3	22	12-23
300	270	178	326	260		445	400	370	4	24.5	12-23
350	290	190	368	314		505	460	430	4	24.5	16-23
400	310	216	423	346	634	565	515	482	4	24.5	16-28
450	330	222	455	385	666	615	565	532	4	25.5	20-28
500	350	229	506	422	728	670	620	585	4	26.5	20-28
600	390	267	568	490	790	780	725	685	5	30	20-31
700	430	292	632	550	854	895	840	800	5	32.5	24-31
800	470	318	692	615	924	1015	950	905	5	35	24-34
900	510	330	815	678	1098	1115	1050	1005	5	37.5	28-34
1000	550	410	880	743	1163	1230	1160	1110	5	40	28-37
1200	630	470	1024	860	1307	1455	1380	1330	5	45	32-40
1400	710	530	1210	1010	1350	1675	1590	1535	5	46	36-43
1600	790	600	1340	1140	1480	1915	1820	1760	5	49	40-49
1800	870	670	1460	1360	1640	2115	2020	1960	5	52	44-49
2000	950	760	1660	1485	1800	2325	2230	2170	5	55	48-49

1.6MPa mm

DN	L		H1	H2	H3	Flange dimensions comply with DIN 2501
DN	long type	short type	H1	H2	H3	O	C	g	f	b	n-d
150	210	140	226	165		285	240	212	3	19	8-23
200	230	152	255	192		340	295	268	3	20	12-23
250	250	165	293	227		405	355	320	3	22	12-28
300	270	178	326	260		460	410	378	4	24.5	12-28
350	290	190	368	314		520	470	438	4	26.5	16-28
400	310	216	423	346	634	580	525	490	4	28	16-31
450	330	222	455	385	666	640	585	550	4	30	20-31
500	350	229	506	422	728	715	650	610	4	31.5	20-34
600	390	267	568	490	790	840	770	725	5	36	20-37
700	430	292	632	550	854	910	840	795	5	39.5	24-37
800	470	318	692	615	924	1025	950	900	5	43	24-40
900	510	330	815	678	1098	1125	1050	1000	5	46.5	28-40
1000	550	410	880	743	1163	1255	1170	1115	5	50	28-43
1200	630	470	1024	860	1307	1485	1390	1330	5	57	32-49
1400	710	530	1210	1010	1350	1685	1590	1530	5	60	36-49
1600	790	600	1340	1140	1480	1930	1820	1750	5	65	40-56

2.5MPa mm

DN	L		H1	H2	H3	Flange dimensions comply with DIN 2501
DN	long type	short type	H1	H2	H3	O	C	g	f	b	n-d
150	210	140	226	165		300	250	211	3	20	8-28
200	230	152	255	192		360	310	274	3	22	12-28
250	250	165	293	227		425	370	330	3	24.5	12-31
300	270	178	326	260		485	430	390	4	27.5	16-31
350	290	190	368	314		555	490	450	4	30	16-34
400	310	216	423	346	634	620	550	500	4	32	16-37
450	330	222	455	385	666	670	600	560	4	34.5	20-37
500	350	229	506	422	728	730	660	610	4	36.5	20-37
600	390	267	568	490	790	845	770	720	5	42	20-40
700	430	292	632	550	854	960	875	820	5	46.5	24-43
800	470	318	692	615	924	1085	990	930	5	51	24-49
900	510	330	815	678	1098	1185	1090	1028	5	55.5	28-49
1000	550	410	880	743	1163				5
1200	630	470	1024	860	1307				5
1400	710	530	1210	1010	1350				5
1600	790	600	1340	1140	1480				5

Stainless Steel Butterfly Valve Maintenance

Open the worm box cover and add some butter per two months.

Check the seal, packing and flange, if leak, please maintain ASAP.
