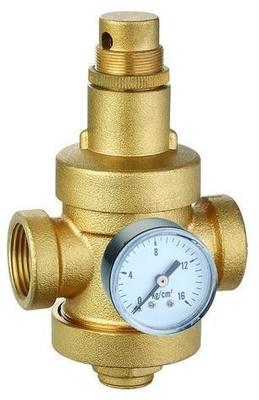

Brass Water Pressure Reducing Valves With Gauge / Pressure Meter ISO 9001

Large Image : Brass Water Pressure Reducing Valves With Gauge / Pressure Meter ISO 9001

Product Details:

Place of Origin:	Shanghai , China
Brand Name:	OEM
Certification:	ISO 9001
Model Number:	AD11

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	Usually packing by plywood case suit for sea delivery
Delivery Time:	1usually within 35 days after received your payment
Payment Terms:	T/T advance or L/C at sight
Supply Ability:	90,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Brass Pressure Reducing Valve	Application:	Water, Oil, Gas Etc.,
Size:	DN15 ~DN50	Pressure:	PN16, 150lbs
Standard:	DIN / BS / AWWA / JIS	Temperature:	-20~120 C
Body:	Brass	Diaphragm:	EPDM
Stem:	2Cr13	Connect:	Thread BSP Or NPT
Gauge:	As Your Request
Highlight:	pressure sustaining valve , pump control valve

Brass Water Pressure Reducing Valve With Gauge Or Pressure Meter

Product name	Pressure reducing valve
Mode	200P DN20-50
Material	Brass
Colour	Golden
Connection mode	Thread

Technical specification
1. Norminal pressure :1.6MPa
2. Working medium:Water.gas.steam.oil
3. Working temperature: ≤80℃
4. Pip thread to ISO 9001/CE

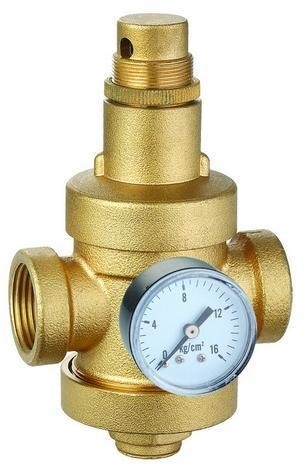

Brass Water Pressure Reducing Valves With Gauge / Pressure Meter ISO 9001 0

Brass Water Pressure Reducing Valves With Gauge / Pressure Meter ISO 9001 1

Normal Pressure:PN16	Main Material:Body,Cover,Stem:SS304
Size:G1/4"	Gasket:NBR EPDM
Medium:water,oil	Main Spring:50CrV
Temperature:0-100°C

If you need more details, please kindly contact with us.

Please kindly ignore the follow information.

PRVS FOR P304A/B
Ø Body Material: Carbon Steel
Ø Trim material: stainless steel
Ø Inlet rating and connection – 1” FEMALE
Ø Outlet rating and connection – 1” FEMALE
Ø Orifice area – E
Ø Operating pressure – 22Kg/cm2
Ø Set pressure – 34Kg/cm2
Ø Fluid – LUBE OIL
Ø Temperature: 45oC

Pressure Relief Valve, Body Material: Carbon Steel, Trim material: stainless steel

The valve instantly opens when the pressure in the pipeline exceeds the preset safe level, thus relieving excessive pressure from the pipeline. When the pressure returns to normal, the valve closes slowly, at an adjustable speed. The valves also can be used to sustain upstream pressure to a preset pressure value.

Explanation of materials for main parts
NO.	Name of part	A21H-C/A21F KA21Y-C Materials	A21W-P/A21F-P KA21Y-P Materials	A21Y-R Materials
1	Union	20	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
2	Union nut	35	2Cr13	1Cr18Ni9Ti
3	Nozzle	35	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
4	Body	2Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
5	Disc	2Cr13/2Cr13+PTFE	1Cr18Ni9Ti/1Cr18nI9Ti+PTFE	1Cr18Ni12Mo2Ti
6	Spring washer	2Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
7	Spring	50CrVA	50CrVA Coated	50CrVA Coated
8	Locking nut	Q235-A	2Cr13	1Cr18Ni9Ti
9	Spring guide	2Cr13	1Cr18Ni9Ti	1Cr18Ni12Mo2Ti
10	Adjusting nut	Q235-A	2Cr13	1Cr18Ni12Mo2Ti
	Sealing surface of material	"Y" Co Depositing stellite, "H" D507 Depositing D507, "W" body

Dimensions (mm)
Type	(DN)	do	d	Do	M	d1	D1	L	L1	H
Type	Nominal diameter	do	d	Do	M	d1	D1	L	L1	H
KA21Y-16C A21H-16C A21H-40	15	12	15	20	M27 1.5	G1/2"	30	35	76	66
A21W-16P A21W-40P KA21Y-16P	20	16	20	25	M33 1.5	G3/4"	34	40	87	68
	25	18	25	31	M39 1.5	G1"	40	50	100	105
A21Y-64	15	10	15	25	M39 1.5	G1"	44	50	100	66
A21Y-64P A21Y-100	20	10	20	31	M39 1.5	G1"	44	50	100	68
A21Y-100P	25	12	25	31	M39 1.5	G1"	44	50	100	105
A21W-160	15	8	20	/	M24 2	G1"	44	50	100	261
/160P	20	8	25	/	M33 2	G1"	44	50	100	261
	25	8	28	/	M36 2	G1"	44	50	100	285

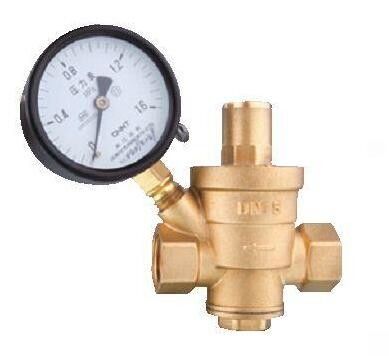

Brass Water Pressure Reducing Valves With Gauge / Pressure Meter ISO 9001 2

Explanation of materials for main parts
NO.	Name of part	A28H Materials	A28Y-P Materials	A28Y-R8 Materials
1	Body	HT200	ZG1Cr18Ni9Ti	CF8M
2	Nozzle	35	ZG1Cr18Ni9Ti	CF8M
3	Adjusting ring	2Cr13	1Cr18Ni9Ti	316
4	Disc	2Cr13	1Cr18Ni9Ti	316
5	Spring	50CrVA	50CrVA Coated	50CrVA Coated
6	Stem	2Cr13	2Cr13	316
7	Adjusting bolt	45	2Cr13	316
8	Cap	ZG200-400	ZG200-400	CF8M
	Sealing surface of material	D507	Co
	Sealing surface of material	Depositing D507	Depositing stellite
10	Adjusting nut	Q235-A	2Cr13	1Cr18Ni12Mo2Ti
	Sealing surface of material	"Y" Co Depositing stellite, "H" D507 Depositing D507, "W" body
