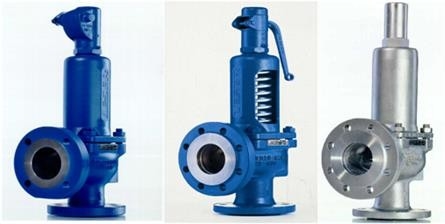

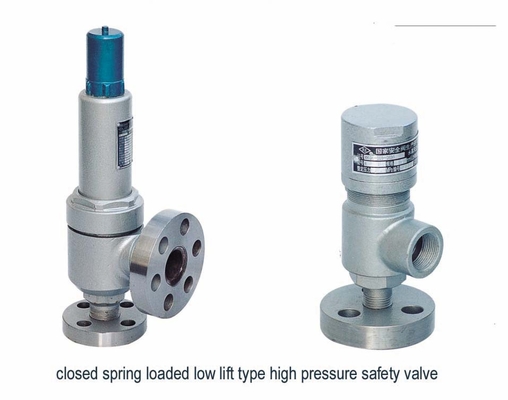

1 Inch Water Pressure Relief Valve JIS Spring Loaded Self Actuated

1 Inch Water Pressure Relief Valve JIS Spring Loaded Self Actuated

These shall be of the diaphragm type or axial flow type or equivalent and either spring-loaded self actuated or pilot operated. The gas shall be vented safely through remote vents. The vent stacks shall be fitted with weather cap of the blow of type.

Capacity : 2000 Nm3/hr
Medium: Feed Gas as per below gas composition

Pipe Size : 4”
Flanged connection ratings 150 # WNRF
Operating pressure : 2 barg
operating temp : 60 deg C
Design temp : 90 deg C
Design pressure : 4 barg
Set Pressure 4 barg
Back pressure : N.A
Relieving Temp : 80 deg C
MOC: Carbon Steel

Sizing for PCV failure

Gas property of Methane

PRVS FOR P305A/B
Ø  Body Material: Carbon Steel
Ø  Trim material:  stainless steel
Ø  Inlet rating and connection – 2”X150#
Ø  Outlet rating and connection – 2”X150#
Ø  Orifice area – F
Ø  Operating pressure – 10Kg/cm2
Ø  Set pressure – 15Kg/cm2
Ø  Fluid – LUBE OIL
Ø  Temperature: 45oC

Pressure Relief Valve, Body Material: Carbon Steel,  Trim material:  stainless steel

The valve instantly opens when the pressure in the pipeline exceeds the preset safe level, thus relieving excessive pressure from the pipeline. When the pressure returns to normal, the valve closes slowly, at an adjustable speed. The valves also can be used to sustain upstream pressure to a preset pressure value.
